Ready-to-install
UL Certified
5 Year Warranty
7-10 Day Turnaround and Cut-off Time:
Order and submit artwork before 4pm PST ships in 7-10 business day. Order after 4pm add 1 business day.
Same Day Turnaround:
Not available for this product.
Available Production Facility
Your orders are dispatched from the closest facility to your ship-to address for speed and savings
CA HeadquartersCA Sign DepartmentTX Print FacilityPA Print Facility

Store pickup only available in our California locations

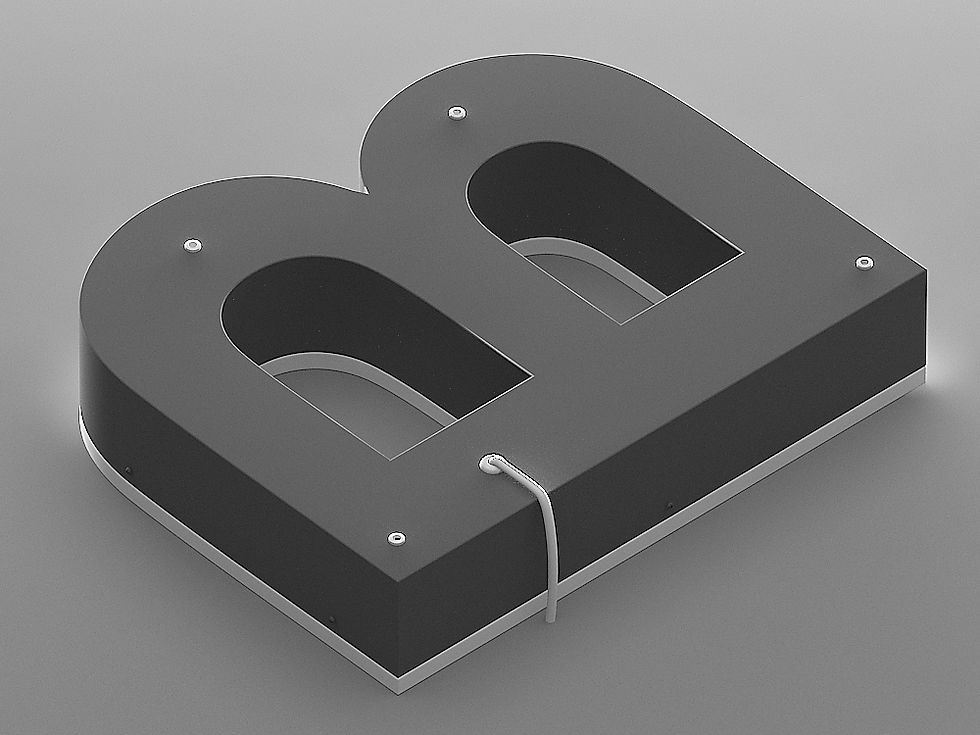

This Front Lit Stainless Steel letter comes standard with a white acrylic face and Stainless Steel return. Color can be customized on any Stainless Steel surface. This is a sturdy front lit option if you are looking for something simple and sleek.
Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
Certified: UL Listed with Sign Section Labels for Outdoor Installation
5 Year Warranty
Components

Face
Faces are the front surface of Front Lit stainless steel letters

Specification
15mm Polycarbonate White Acrylic


Return
Returns are the sides of the Front Lit letter.

Specification
2" or 3" 0.8mm/1mm Stainless Steel Returns

Download Return Color Chart

Back
Backs are the back board of the Front Lit stainless steel letter.

Specification
0.8mm/1mm Stainless Steel

Same as Return Color

LED Lights
Specification

Mynice High Efficiency, 160° Beam, IP67, 10000K - 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)

Power Transformer
Specification

Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)

Installation Guide

Raceway
Specification

Size:
5.5" height and 3.5" depth
Customizable length from 10" to 46"
For wider applications, multiple segments are used to achieve the desired length

Accessories:
Raceway base (each segment)
Raceway cover (each segment)
End caps x2 (each raceway)
Connect plates x2 (each segment)
Mounting brackets x4 (each segment)
Self-tapping screws x20 (each segment)

Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.

Raceway Installation Guide:
List out parts
Assemble Raceway
Put Hanger on
Warranty
5 Years Warranty








FAQ
What are the maximum and minimum production limits for each letter?
What kind of art files should I submit?
How long is the production time for stainless steel channel letters?
How long is the wiring/cord?
Are installation accessories provided?
Do you also have optional parts for installation?
Manual

Channel Letter User Manual
